Your Gate System

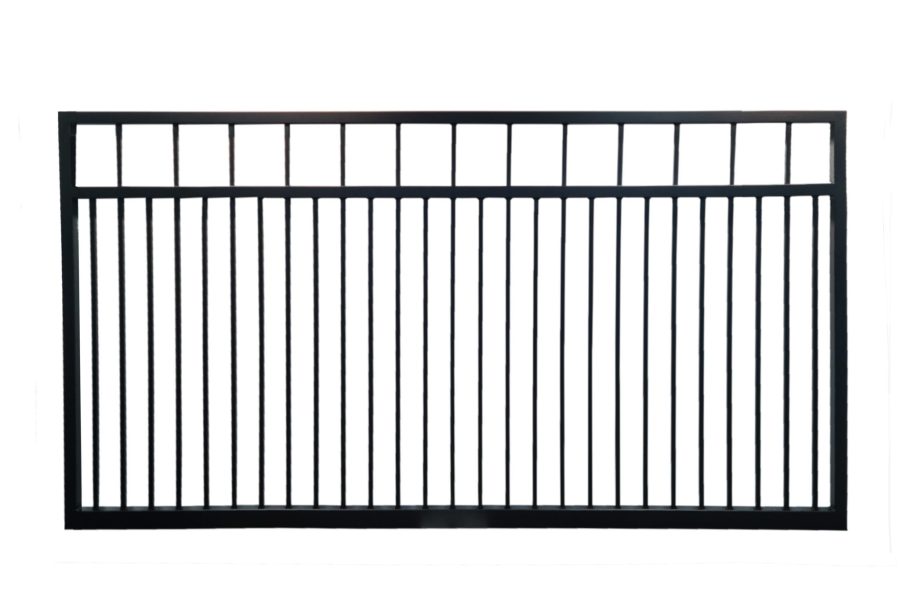

Classic Flat Rail Gate - 1700 High

A classic aluminium gate with a modern look. Finished with robust black powercoating and constructed with corrosion resistant 6063 Grade aluminium to withstand NZ’s harsh environment. Heavy gauge aluminium outer frame (50 x 50 x 3mm) for stiffness and rigidity – Southern Gates are built to last and all come with a 5 year warranty!

We also supply all mounting options for manual or automated operation – get in touch and we’ll help build your perfect gate kit.

This gate is suitable for swing or slide operation and for high wind environments.

Click image to enlarge

ABLE Sliding Gate Automation Kit 240V Mains Voltage

Click image to enlarge

Key Features

  • Fast Italian made motor: 21m/min speed (See more motor specs below
  • Safety Beams: Placed either side of the gate to prevent the gate closing if there is an obstruction—vehicle, child, pet etc. Wireless unit is on the closing side with replaceable batteries (2YR life). IP55 Weatherproof rating, 180 degree adjustable lens for precise setup.
  • Remotes: X2 2-Button Remotes with Rolling Code Security
  • Gear Racking: UV Stabilised, nylon racking with steel reinforced core and black mounting Tek screws

Specifications

  • ABLE SL
  • 21m / minute speed
  • Maximum gate weight: 400kg
  • Working Temp –30—+70c
  • IP54 Weatherproof rating
  • 2YR Return to Base Warranty
  • Manual Release system
  • Accurate and safe operation with encoder
  • Obstacle detection
  • Programmable acceleration and deceleration
  • Self-learning of opening and closing times
  • Optional 161237 backup battery kit

Slide HW Kit LHO-Recessed

Key Features

  • Track: Galvanised U Track
  • Wheels: Recessed type with bracket and stainless steel fixing bolts. Dual Bearing. U Groove.
  • Guide Rollers: Black UV Stabilised nylon rollers with black powder coated mounting bracket
  • Gate Nose: Black UV Stabilised nylon – this protects the gate where it meets the metal end catch
  • End Catch inc: Gate End Catch Powder Coated Black
  • Anti Theft Bracket: Prevents the Gate being lifted of the track by thieves whilst in the closed position.
  • Ground Stop: Powder coated black with anchor bolts included.
  • Fasteners: All fasteners required to fix above hardware

Walk-through Video

List of Installers

These are the trusted installers we recommend to ensure your gates are installed properly, securely, and according to the highest standards. Working with experienced professionals helps guarantee safe installation, reliable performance, and long-term durability for your gate system.
