Akuvox R20K-L
$1,300.00
The peace of mind to control who can enter your property by verbally and visually confirming their identity is fantastic.

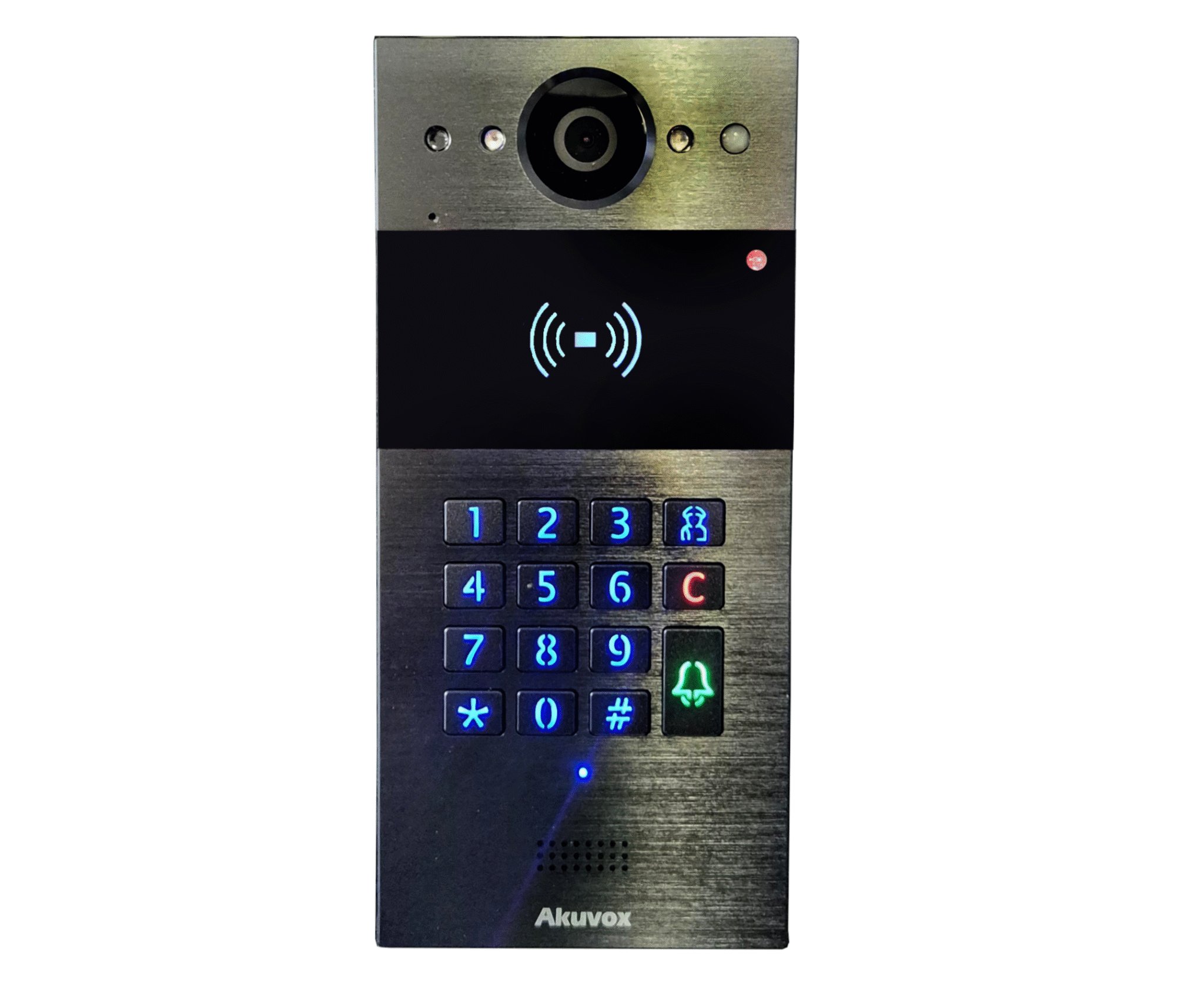

Akuvox’s Video Intercom R20K-L enables you to reliably and easily monitor an entrance door or gate to grant access – all from the convenience of your phone.

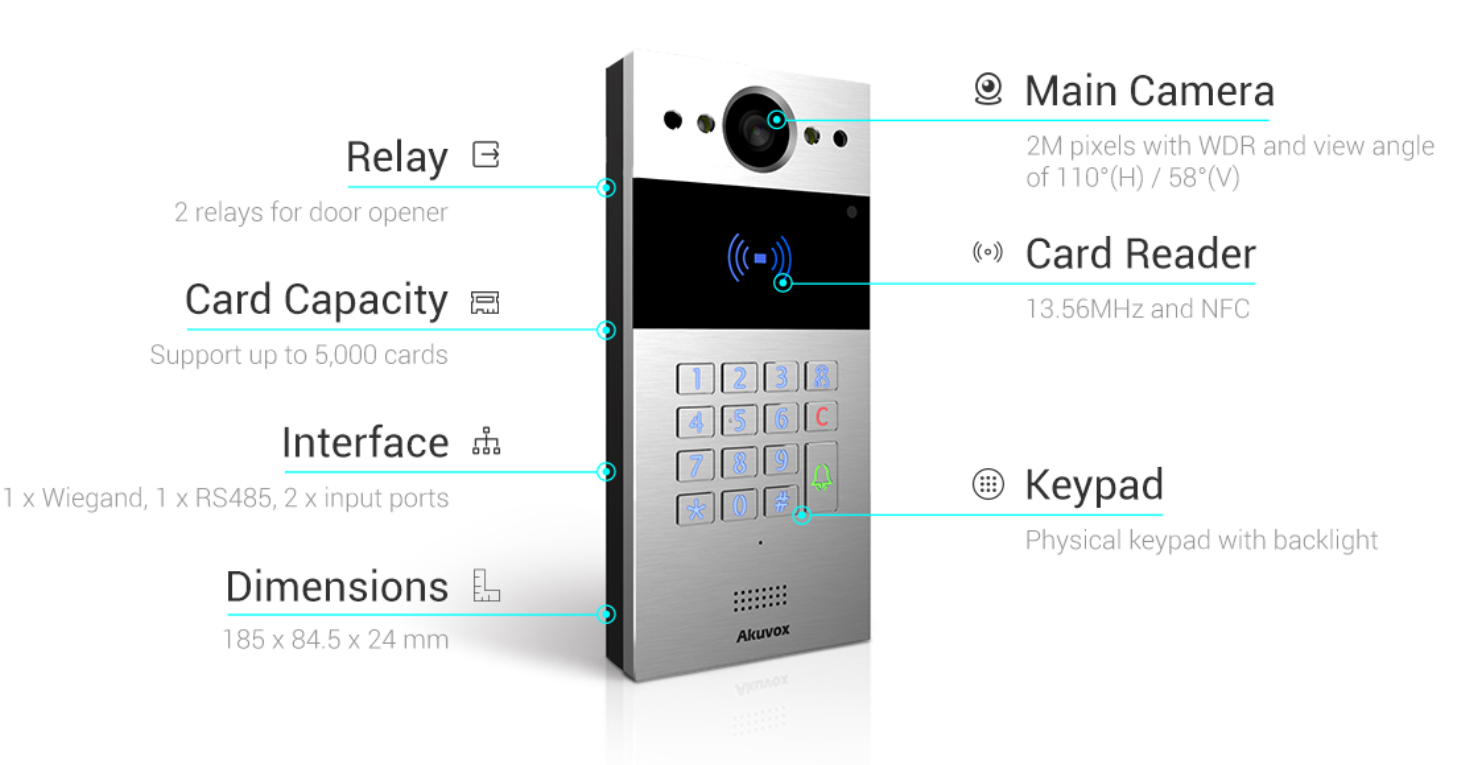

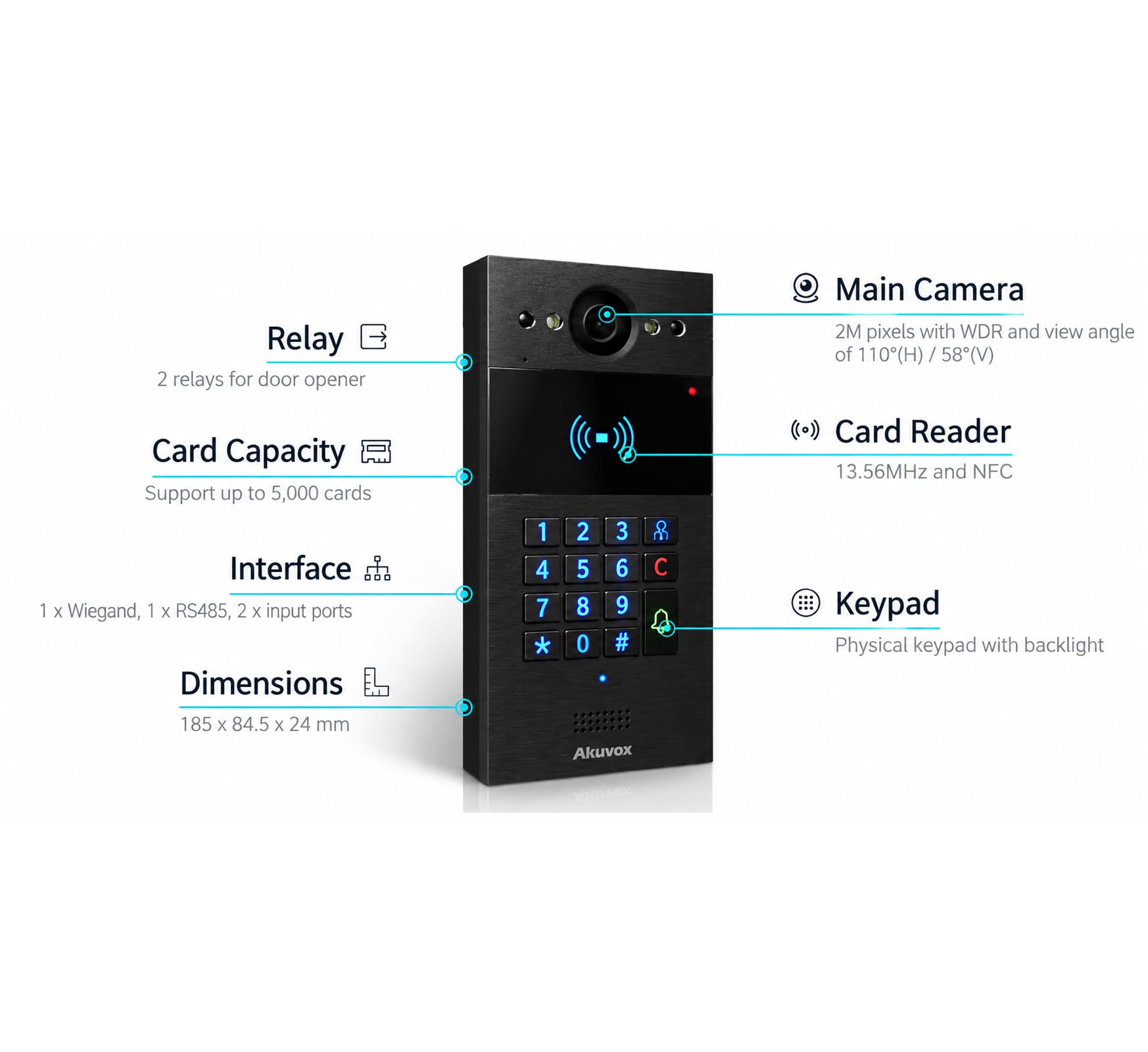

Key Features
- Vandal resistant aluminum body with keypad
- Wide-angle camera with auto lighting to ensure vibrant, clear footage day and night.
- Camera permanently operational
- Highly compatible with other branded systems for seamless integration – such as CCTV, Smart Control systems
- Clear Two-way audio communication with Echo Cancellation
- Surface-mounted with optional flush mount kit, or pair with our accessory shrouds.
- Motion sensor Support
- RF reader
- NFC (Android only)
- Water and dust proof IP65 rating
- Dimension (HxWxD): 185×84.5x24mm
Specifications
Specifications
Physical & Power
- Front panel: Aluminum alloy
- Camera: 2M pixels, automatic lighting
- Numeric keypad with extra buttons
- Light sensor: Support
- Motion sensor: Support
- Wiegand port: 1ch input/output(selectable)
- RS485 port: Support
- RF reader: 13.56MHz & NFC (only Android)
- Relays out: 2
- Inputs: 2
- Microphone: 1
- Speaker: 1
- Tamper Alarm: Support
- Ethernet port: RJ45, 10/100Mbps adaptive
- SIM Card Slot：Support
- 12V DC connector
- 802.3af Power-over-Ethernet
- IP Rating: IP65
- Installation: Flush-mounted or Wall-mounted
- Dimension (HxWxD): 185×84.5x24mm
- Working Humidity: 10~90%
- Working Temperature: -30°C ~ +60°C
- Storage Temperature: -40°C ~ +70°C
Audio
- SIP v1 (RFC2543), SIP v2 (RFC3261)
- Narrowband audio codec: G.711a, G.711μ
- Wideband audio codec: G.722
- DTMF: In-band, out-of-band DTMF (RFC2833),
SIP Info - Echo Cancellation
- Voice Activation Detection
- Comfort Noise Generator
Video
- Sensor: 1/2.8”, CMOS
- Pixels: CIF, VGA, 4CIF, 720p, 1080p
- Video codec: H.264
- Video resolution: up to 1920×1080
- Max. image transfer rate: 1080p – 30fps
- Viewing angle: 110°(H) / 58°(V)
- High intensity IR LEDs for picture lighting during
dark hours with internal light sensor - Compatible to 3rd-Party-Video components,
e.g. NVRs
Network Connection
- LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18
/B19/B20/B25/ B26/B28 - LTE-TDD: B38/B39/B40/B41
- WCDMA: B1/B2/B4/B5/B6/B8/B19
Door Entry Feature
- Relays controlled individually by DTMF tones
- Multi-way Unlock: Mifare Card and PIN
- Camera permanently operational
- White balance: auto
- Minimum illumination: 0.1LUX
Capacity
- User: 5,000
- Card: 25,000
- PIN: 5,000
Card Type
- Mifare card
- DesFire card（EV1/EV2/EV3）
Deployment & Maintenance
- Auto-Provisioning
- Web management portal
- Web-based packet dump
- Configuration backup / restore
- Entry log export
- Access table export / import
- Firmware upgrade
- System logs (include door access logs)
